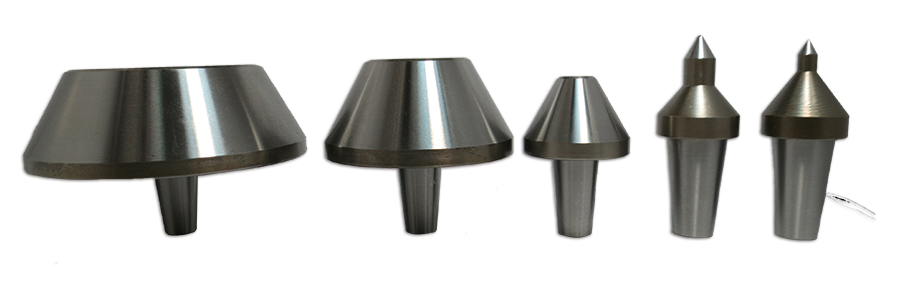

Replaceable thimble

Material-SUJ2
Outside diameter can be lengthened; fore-end can be made of tungsten carbide

Unit：m/m

ITEM NO.	A	B	C
RT101	3	12.5	37.5
RT102	6	12.5	37.5
RT103	8	12.5	37.5
RT104	10	12.5	37.5
RT105	12.7	12.5	37.5
RT106	32	12.5	40.5

ITEM NO.	A	B	C
RT201	6	16	46.5
RT202	8	16	46.5
RT203	10	16	46.5
RT204	15	16	46.5
RT205	35	16	53
RT2-20-35	20	35	60
RT2-35-50	35	50	60
RT2-50-65	50	65	60
RT2-65-80	65	80	60
RT2-80-95	80	95	60
RT2-95-110	95	110	60

ITEM NO.	A	B	C
RT301	6	19	65
RT302	8	19	65
RT303	10	19	65
RT304	12	19	65
RT305	16	19	65
RT306	20	19	65
RT3-20-35	20	35	65
RT3-35-50	35	50	65
RT3-50-65	50	65	65
RT3-65-80	65	80	65
RT3-80-95	80	95	65
RT3-95-110	95	110	65
