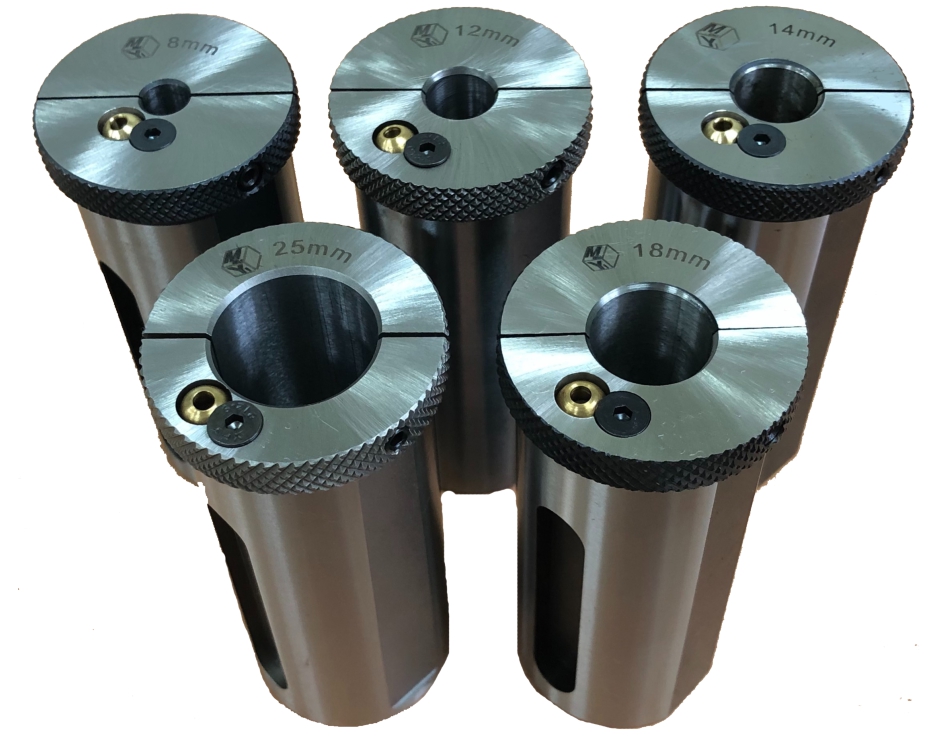

Anti-Vibration Cutting Sleeve

Reducing consumed lnserts.
Increasing the speed of feed and productivity.
Using clamping to avoid breaking for tungsten carbide shank.
No milling both sides to enhance the strength. and maintain the completive shank.
Taiwan patent number：M412830
People's Republic of China Patent and PCD United Nations Patent.

Unit：m/m

Specification	A	B	C	D
ME2504	25	4	56	63
ME2506	25	6	56	63
ME2508	25	8	56	63
ME2510	25	10	56	63
ME2512	25	12	56	63
ME2514	25	14	56	63
ME2516	25	16	56	63
ME2518	25	18	56	63
ME2520	25	20	56	63

Item No.	A	B	C	D
ME3206	32	6	78	86
ME3208	32	8	78	86
ME3210	32	10	78	86
ME3212	32	12	78	86
ME3214	32	14	78	86
ME3216	32	16	78	86
ME3218	32	18	78	86
ME3220	32	20	78	86
ME3222	32	7/8"	78	86
ME3225	32	25	78	86

Item No.	A	B	C	D
ME4006	40	6	89	98
ME4008	40	8	89	98
ME4010	40	10	89	98
ME4012	40	12	89	98
ME4014	40	14	89	98
ME4016	40	16	89	98
ME4018	40	18	89	98
ME4020	40	20	89	98
ME4022	40	7/8"	89	98
ME4025	40	25	89	98
ME4032	40	32	89	98

Item No.	A	B	C	D
ME5010	50	10	104	112
ME5012	50	12	104	112
ME5014	50	14	104	112
ME5016	50	16	104	112
ME5018	50	18	104	112
ME5020	50	20	104	112
ME5022	50	7/8"	104	112
ME5025	50	25	104	112
ME5032	50	32	104	112
ME5040	50	40	104	112
